B3PAN3S

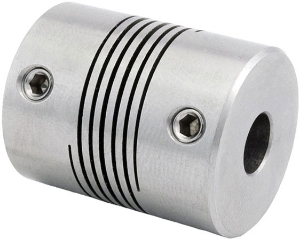

Ondrives Precision Gears and Gearboxes Part number B3PAN3S

B3PAN3S

Spiral 3 Beam 303 Stainless Steel Coupling, Backlash free, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number B3PAN3S Ondrives Precision Gears and Gearboxes Part number B3PAN3S

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Bore Diameter [B] H73
Fixing TypeSet Screw
Max. Bore Diameter4.76
Diameter [A]9.52
Dimension [L]14.2
Dimension [C]2.8
Set ScrewM2.5
Angular Offset5°
Parallel Offset0.10
Max. Torque (Nm)0.75

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Bore Diameter [B] H73
Fixing TypeSet Screw
Max. Bore Diameter4.76
Diameter [A]9.52
Dimension [L]14.2
Dimension [C]2.8
Set ScrewM2.5
Angular Offset5°
Parallel Offset0.10
Max. Torque (Nm)0.75
