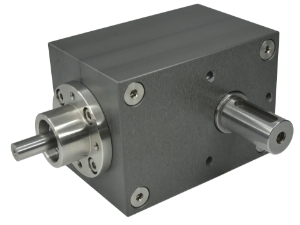

SBH-32-24

•24:1 Spiral Bevel Helical Gearbox •Right Angle 1 Shaft Input 1 Output shaft • ≤8' backlash

Product specifications

Gear Ratio [i=]	24:1
Output Torque T₂max [Nm]	30
Nom Output Torque T₂n [Nm]	16
Nom. Input Speed S5 T₂n [n1nom]	1500 min-1 (r/min)
Max. Input Speed [n1max]	5500 min-1 (r/min)
Output Backlash j	≤0.13°
Efficiency n1nom [ηz]	≈96%
Reflected Inertia at Input (kg•m²)	5.68 x 10-5
Mass [kg]	0.729
Max. Input Radial Load Fr1 N	20
Max. Output Radial Load Fr2 N	450
Max. Input Axial Load Fa1 N	20
Max. Output Axial Load Fa2 N	300
Lubrication Grease	KLUBERSYNTH GE 46-1200
Max. Operating Temp of Lub	≈75°C
Noise Level Low Load	≈75dB(A)

Gear Ratio [i=]	24:1
Output Torque T₂max [Nm]	30
Nom Output Torque T₂n [Nm]	16
Nom. Input Speed S5 T₂n [n1nom]	1500 min-1 (r/min)
Max. Input Speed [n1max]	5500 min-1 (r/min)
Output Backlash j	≤0.13°
Efficiency n1nom [ηz]	≈96%
Reflected Inertia at Input (kg•m²)	5.68 x 10-5
Mass [kg]	0.729
Max. Input Radial Load Fr1 N	20
Max. Output Radial Load Fr2 N	450
Max. Input Axial Load Fa1 N	20
Max. Output Axial Load Fa2 N	300
Lubrication Grease	KLUBERSYNTH GE 46-1200
Max. Operating Temp of Lub	≈75°C
Noise Level Low Load	≈75dB(A)
