SBH-60-12

Ondrives Precision Gears and Gearboxes Part number SBH-60-12

SBH-60-12

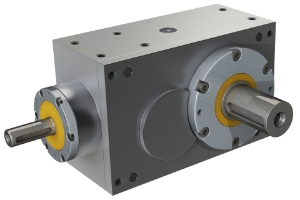

•12:1 Spiral Bevel Helical Gearbox •Right Angle 1 Shaft Input 2 Output shaft • ≤8' backlash
Ondrives Precision Gears and Gearboxes Part number SBH-60-12 Ondrives Precision Gears and Gearboxes Part number SBH-60-12 Ondrives Precision Gears and Gearboxes Part number SBH-60-12 Ondrives Precision Gears and Gearboxes Part number SBH-60-12 Ondrives Precision Gears and Gearboxes Part number SBH-60-12 Ondrives Precision Gears and Gearboxes Part number SBH-60-12 Ondrives Precision Gears and Gearboxes Part number SBH-60-12 Ondrives Precision Gears and Gearboxes Part number SBH-60-12

Product specifications

Gear Ratio [i=]12:1
Output Torque T₂max [Nm]200
Nom Output Torque T₂n [Nm]120
Nom. Input Speed S5 T₂n [n1nom]1500 min-1 (r/min)
Max. Input Speed [n1max]5500 min-1 (r/min)
Output Backlash j≤0.13°
Efficiency n1nom [ηz]≈96%
Mass [kg]7
Max. Input Radial Load Fr1 N500
Max. Output Radial Load Fr2 N4000
Max. Input Axial Load Fa1 N200
Max. Output Axial Load Fa2 N2000
Lubrication OilKlubersynth GH 6-220
Max. Operating Temp of Lub≈95°C
Noise Level Low Load≈75dB(A)

Product specifications

Gear Ratio [i=]12:1
Output Torque T₂max [Nm]200
Nom Output Torque T₂n [Nm]120
Nom. Input Speed S5 T₂n [n1nom]1500 min-1 (r/min)
Max. Input Speed [n1max]5500 min-1 (r/min)
Output Backlash j≤0.13°
Efficiency n1nom [ηz]≈96%
Mass [kg]7
Max. Input Radial Load Fr1 N500
Max. Output Radial Load Fr2 N4000
Max. Input Axial Load Fa1 N200
Max. Output Axial Load Fa2 N2000
Lubrication OilKlubersynth GH 6-220
Max. Operating Temp of Lub≈95°C
Noise Level Low Load≈75dB(A)
