BC32

BC32

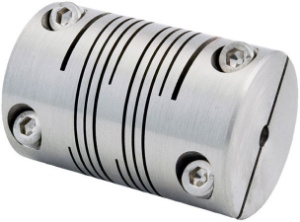

Spiral 6 Beam 303 Stainless Steel Coupling, Backlash free, Clamp Fixing

Product specifications

Fixing TypeClamp
MaterialStainless Steel 303 S3U
Bore Diameter [D1]1.6
Bore Diameter [D2]2.9
Max. Bore Diameter4.76
Diameter [A]9.52
Dimension [L]19.55
Dimension [C]5.3
Cap ScrewM1.6
Angular Offset
Parallel Offset0.12
Non Reversing Torque (Nm)0.75
Shock & Reversing Torque (Nm)0.38
Max. Torque (Nm)1.5
Static Stiffness (Nm/rad)6
