BWU60-120

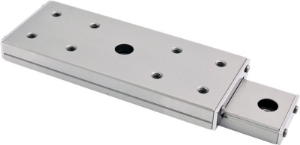

Ondrives Precision Gears and Gearboxes Part number BWU60-120

BWU60-120

All Stainless Steel Construction Precision Linear Slide Unit, Suitable for use in a Clean Room
Ondrives Precision Gears and Gearboxes Part number BWU60-120 Ondrives Precision Gears and Gearboxes Part number BWU60-120 Ondrives Precision Gears and Gearboxes Part number BWU60-120 Ondrives Precision Gears and Gearboxes Part number BWU60-120 Ondrives Precision Gears and Gearboxes Part number BWU60-120

Product specifications

Mass (g)723
Dimension [W]60
Dimension [k] [H]16
Dimension [H1]3.6
Dimension [N]9
Dimension [L]120
Max. Stroke68
Dimension [W1]36
Dimension [L1]100
Dimension [b]40
Thread [d]M4
Dimension [S1]4
Dimension [W2]23
Dimension [L3]60
Dimension [d]8
Dimension [t]1.1
Dimension [W3]42
Dimension [H2]10
Dimension [W4]23
Dimension [n]2
Dimension [P]40
Diameter [d1]4.5
Dimension [x]8
Dimension [h]4.5
Basic Dynamic Load Rating [N]8050
Basic Static Load Rating [N]12100
Allowable Load F (N)4030
Static Rated Torque T0 Nm264

Product specifications

Mass (g)723
Dimension [W]60
Dimension [k] [H]16
Dimension [H1]3.6
Dimension [N]9
Dimension [L]120
Max. Stroke68
Dimension [W1]36
Dimension [L1]100
Dimension [b]40
Thread [d]M4
Dimension [S1]4
Dimension [W2]23
Dimension [L3]60
Dimension [d]8
Dimension [t]1.1
Dimension [W3]42
Dimension [H2]10
Dimension [W4]23
Dimension [n]2
Dimension [P]40
Diameter [d1]4.5
Dimension [x]8
Dimension [h]4.5
Basic Dynamic Load Rating [N]8050
Basic Static Load Rating [N]12100
Allowable Load F (N)4030
Static Rated Torque T0 Nm264
