KMTA14

Ondrives Precision Gears and Gearboxes Part number KMTA14

KMTA14

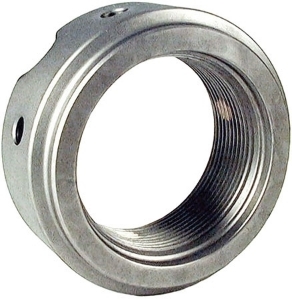

Compact Design Bearing Locknut, M70
Ondrives Precision Gears and Gearboxes Part number KMTA14 Ondrives Precision Gears and Gearboxes Part number KMTA14 Ondrives Precision Gears and Gearboxes Part number KMTA14

Product specifications

Thread [M x P]M70 x 1.5
Diameter [D]95
Diameter [D1]86
Diameter [D2]72
Dimension [k] [H]26
Dimension [J1]85
Dimension [J2]14
Dimension [N1]5.3
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]490
Mass [kg]0.62
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18

Product specifications

Thread [M x P]M70 x 1.5
Diameter [D]95
Diameter [D1]86
Diameter [D2]72
Dimension [k] [H]26
Dimension [J1]85
Dimension [J2]14
Dimension [N1]5.3
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]490
Mass [kg]0.62
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18
