KMTA17

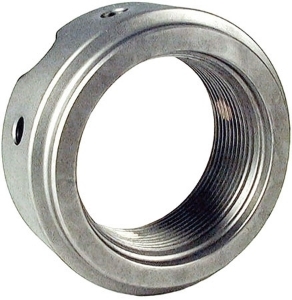

Ondrives Precision Gears and Gearboxes Part number KMTA17

KMTA17

Compact Design Bearing Locknut, M85
Ondrives Precision Gears and Gearboxes Part number KMTA17 Ondrives Precision Gears and Gearboxes Part number KMTA17 Ondrives Precision Gears and Gearboxes Part number KMTA17

Product specifications

Thread [M x P]M85 x 2
Diameter [D]115
Diameter [D1]102
Diameter [D2]88
Dimension [k] [H]32
Dimension [J1]100
Dimension [J2]17
Dimension [N1]6.4
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]650
Mass [kg]1.15
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35

Product specifications

Thread [M x P]M85 x 2
Diameter [D]115
Diameter [D1]102
Diameter [D2]88
Dimension [k] [H]32
Dimension [J1]100
Dimension [J2]17
Dimension [N1]6.4
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]650
Mass [kg]1.15
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35
