KMTA22

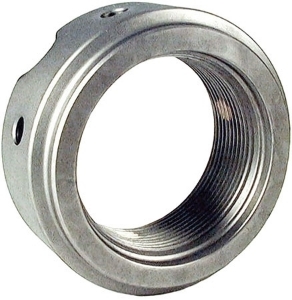

Ondrives Precision Gears and Gearboxes Part number KMTA22

KMTA22

Compact Design Bearing Locknut, M110
Ondrives Precision Gears and Gearboxes Part number KMTA22 Ondrives Precision Gears and Gearboxes Part number KMTA22 Ondrives Precision Gears and Gearboxes Part number KMTA22

Product specifications

Thread [M x P]M110 x 2
Diameter [D]140
Diameter [D1]132
Diameter [D2]112
Dimension [k] [H]32
Dimension [J1]128
Dimension [J2]17
Dimension [N1]6.4
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]800
Mass [kg]1.45
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35

Product specifications

Thread [M x P]M110 x 2
Diameter [D]140
Diameter [D1]132
Diameter [D2]112
Dimension [k] [H]32
Dimension [J1]128
Dimension [J2]17
Dimension [N1]6.4
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]800
Mass [kg]1.45
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35
