KMTA32

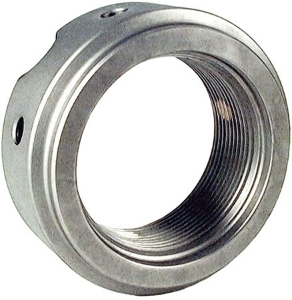

Ondrives Precision Gears and Gearboxes Part number KMTA32

KMTA32

Compact Design Bearing Locknut, M160
Ondrives Precision Gears and Gearboxes Part number KMTA32 Ondrives Precision Gears and Gearboxes Part number KMTA32 Ondrives Precision Gears and Gearboxes Part number KMTA32

Product specifications

Thread [M x P]M160 x 3
Diameter [D]205
Diameter [D1]190
Diameter [D2]162
Dimension [k] [H]32
Dimension [J1]185
Dimension [J2]17
Dimension [N1]8.4
Dimension [N2]10
Static Axial Load Carrying Capacity [kN]1100
Mass [kg]3.15
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35

Product specifications

Thread [M x P]M160 x 3
Diameter [D]205
Diameter [D1]190
Diameter [D2]162
Dimension [k] [H]32
Dimension [J1]185
Dimension [J2]17
Dimension [N1]8.4
Dimension [N2]10
Static Axial Load Carrying Capacity [kN]1100
Mass [kg]3.15
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35
