KMTA34

Ondrives Precision Gears and Gearboxes Part number KMTA34

KMTA34

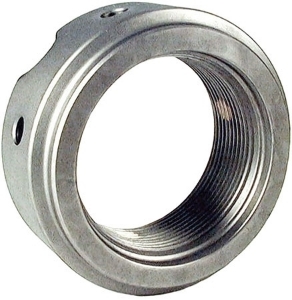

Compact Design Bearing Locknut, M170
Ondrives Precision Gears and Gearboxes Part number KMTA34 Ondrives Precision Gears and Gearboxes Part number KMTA34 Ondrives Precision Gears and Gearboxes Part number KMTA34

Product specifications

Thread [M x P]M170 x 3
Diameter [D]215
Diameter [D1]205
Diameter [D2]172
Dimension [k] [H]32
Dimension [J1]195
Dimension [J2]17
Dimension [N1]8.4
Dimension [N2]10
Static Axial Load Carrying Capacity [kN]1160
Mass [kg]3.3
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35

Product specifications

Thread [M x P]M170 x 3
Diameter [D]215
Diameter [D1]205
Diameter [D2]172
Dimension [k] [H]32
Dimension [J1]195
Dimension [J2]17
Dimension [N1]8.4
Dimension [N2]10
Static Axial Load Carrying Capacity [kN]1160
Mass [kg]3.3
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35
