KMTA36

Ondrives Precision Gears and Gearboxes Part number KMTA36

KMTA36

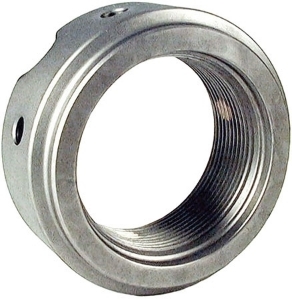

Compact Design Bearing Locknut, M180
Ondrives Precision Gears and Gearboxes Part number KMTA36 Ondrives Precision Gears and Gearboxes Part number KMTA36 Ondrives Precision Gears and Gearboxes Part number KMTA36

Product specifications

Thread [M x P]M180 x 3
Diameter [D]230
Diameter [D1]215
Diameter [D2]182
Dimension [k] [H]32
Dimension [J1]210
Dimension [J2]17
Dimension [N1]8.4
Dimension [N2]10
Static Axial Load Carrying Capacity [kN]1220
Mass [kg]3.9
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35

Product specifications

Thread [M x P]M180 x 3
Diameter [D]230
Diameter [D1]215
Diameter [D2]182
Dimension [k] [H]32
Dimension [J1]210
Dimension [J2]17
Dimension [N1]8.4
Dimension [N2]10
Static Axial Load Carrying Capacity [kN]1220
Mass [kg]3.9
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35
