UCP214

Ondrives Precision Gears and Gearboxes Part number UCP214

UCP214

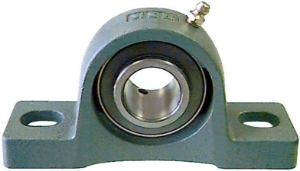

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCP214 Ondrives Precision Gears and Gearboxes Part number UCP214

Product specifications

Shaft Diameter70
Dimension [k] [H]79.4
Dimension [L]266
Dimension [J]210
Dimension [A]72
Dimension [N]25
Dimension [N1]28
Dimension [H1]27
Dimension [H2]157
Dimension [L1]77
Dimension [B]74.6
Dimension [S]30.2
Bolt SizeM20
Dynamic Load Rating [N]62000
Static Load Rating [N]44000
Mass [kg]6.5

Product specifications

Shaft Diameter70
Dimension [k] [H]79.4
Dimension [L]266
Dimension [J]210
Dimension [A]72
Dimension [N]25
Dimension [N1]28
Dimension [H1]27
Dimension [H2]157
Dimension [L1]77
Dimension [B]74.6
Dimension [S]30.2
Bolt SizeM20
Dynamic Load Rating [N]62000
Static Load Rating [N]44000
Mass [kg]6.5
