UCP217

Ondrives Precision Gears and Gearboxes Part number UCP217

UCP217

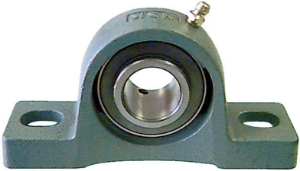

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCP217 Ondrives Precision Gears and Gearboxes Part number UCP217

Product specifications

Shaft Diameter85
Dimension [k] [H]95.2
Dimension [L]310
Dimension [J]247
Dimension [A]83
Dimension [N]25
Dimension [N1]28
Dimension [H1]32
Dimension [H2]187
Dimension [L1]85
Dimension [B]85.7
Dimension [S]34.1
Bolt SizeM20
Dynamic Load Rating [N]84000
Static Load Rating [N]62000
Mass [kg]11

Product specifications

Shaft Diameter85
Dimension [k] [H]95.2
Dimension [L]310
Dimension [J]247
Dimension [A]83
Dimension [N]25
Dimension [N1]28
Dimension [H1]32
Dimension [H2]187
Dimension [L1]85
Dimension [B]85.7
Dimension [S]34.1
Bolt SizeM20
Dynamic Load Rating [N]84000
Static Load Rating [N]62000
Mass [kg]11
