DCS12.7/7.75-35

sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

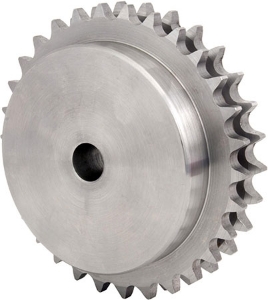

DCS12.7/7.75-35

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-2), 8.51mm Roller Diameter
sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.08B-2
Pitch/Lead12.7
No. of Teeth [z]35
Tip Diameter [de]146.5
Ref. Diameter [dp]141.68
Hub Diameter [BD]100
Bore Diameter [di]20
Sprocket Width [E]40
Mass [kg]3.4

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.08B-2
Pitch/Lead12.7
No. of Teeth [z]35
Tip Diameter [de]146.5
Ref. Diameter [dp]141.68
Hub Diameter [BD]100
Bore Diameter [di]20
Sprocket Width [E]40
Mass [kg]3.4
