DCS12.7/7.75-40

Ondrives Precision Gears and Gearboxes Part number DCS12.7/7.75-40

DCS12.7/7.75-40

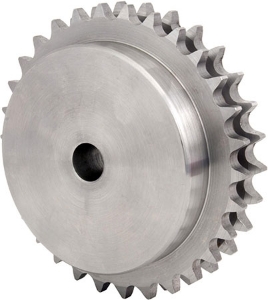

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-2), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number DCS12.7/7.75-40 Ondrives Precision Gears and Gearboxes Part number DCS12.7/7.75-40

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.08B-2
Pitch/Lead12.7
No. of Teeth [z]40
Tip Diameter [de]166.7
Ref. Diameter [dp]161.87
Hub Diameter [BD]100
Bore Diameter [di]20
Sprocket Width [E]40
Mass kg4.15

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.08B-2
Pitch/Lead12.7
No. of Teeth [z]40
Tip Diameter [de]166.7
Ref. Diameter [dp]161.87
Hub Diameter [BD]100
Bore Diameter [di]20
Sprocket Width [E]40
Mass kg4.15
