DCS25.4-13

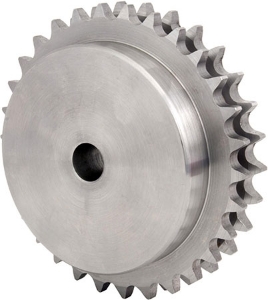

sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

DCS25.4-13

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-2), 5/8" (15.875mm) Roller Diameter
sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]13
Tip Diameter [de]117.7
Ref. Diameter [dp]106.12
Hub Diameter [BD]80
Bore Diameter [di]20
Sprocket Width [E]70
Mass [kg]3.18

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]13
Tip Diameter [de]117.7
Ref. Diameter [dp]106.12
Hub Diameter [BD]80
Bore Diameter [di]20
Sprocket Width [E]70
Mass [kg]3.18
