DCS25.4-17

Ondrives Precision Gears and Gearboxes Part number DCS25.4-17

DCS25.4-17

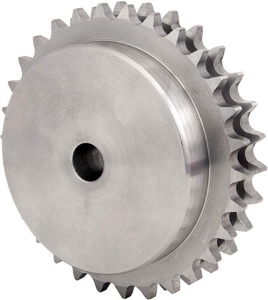

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-2), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number DCS25.4-17 Ondrives Precision Gears and Gearboxes Part number DCS25.4-17

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]17
Tip Diameter [de]149.8
Ref. Diameter [dp]138.22
Hub Diameter [BD]112
Bore Diameter [di]20
Sprocket Width [E]70
Mass kg5.98

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]17
Tip Diameter [de]149.8
Ref. Diameter [dp]138.22
Hub Diameter [BD]112
Bore Diameter [di]20
Sprocket Width [E]70
Mass kg5.98
