DCS25.4-22

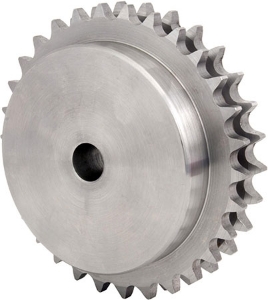

Ondrives Precision Gears and Gearboxes Part number DCS25.4-22

DCS25.4-22

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-2), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number DCS25.4-22 Ondrives Precision Gears and Gearboxes Part number DCS25.4-22

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]22
Tip Diameter [de]190.1
Ref. Diameter [dp]178.48
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg10

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]22
Tip Diameter [de]190.1
Ref. Diameter [dp]178.48
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg10
