DCS25.4-27

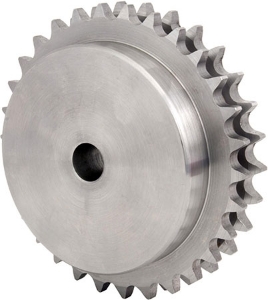

Ondrives Precision Gears and Gearboxes Part number DCS25.4-27

DCS25.4-27

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-2), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number DCS25.4-27 Ondrives Precision Gears and Gearboxes Part number DCS25.4-27

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]27
Tip Diameter [de]230.4
Ref. Diameter [dp]218.79
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg14.38

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]27
Tip Diameter [de]230.4
Ref. Diameter [dp]218.79
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg14.38
