DCS25.4-33

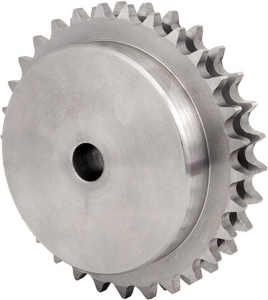

Ondrives Precision Gears and Gearboxes Part number DCS25.4-33

DCS25.4-33

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-2), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number DCS25.4-33 Ondrives Precision Gears and Gearboxes Part number DCS25.4-33

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]33
Tip Diameter [de]278.8
Ref. Diameter [dp]267.21
Hub Diameter [BD]140
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg21.29

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.16B-2
Pitch/Lead25.4
No. of Teeth [z]33
Tip Diameter [de]278.8
Ref. Diameter [dp]267.21
Hub Diameter [BD]140
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg21.29
