DCS31.75-20

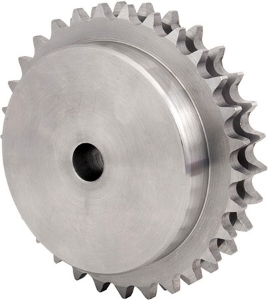

Ondrives Precision Gears and Gearboxes Part number DCS31.75-20

DCS31.75-20

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1 1/4" (31.75mm) Pitch (ISO 20B-2), 3/4" (19.05mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number DCS31.75-20 Ondrives Precision Gears and Gearboxes Part number DCS31.75-20

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.20B-2
Pitch/Lead31.75
No. of Teeth [z]20
Tip Diameter [de]217.9
Ref. Diameter [dp]202.98
Hub Diameter [BD]120
Bore Diameter [di]30
Sprocket Width [E]80
Mass kg13.38

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.20B-2
Pitch/Lead31.75
No. of Teeth [z]20
Tip Diameter [de]217.9
Ref. Diameter [dp]202.98
Hub Diameter [BD]120
Bore Diameter [di]30
Sprocket Width [E]80
Mass kg13.38
