DCS38.1-18

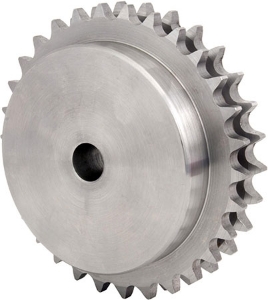

Ondrives Precision Gears and Gearboxes Part number DCS38.1-18

DCS38.1-18

Bossed C43 UNI 7847 Carbon Steel Duplex Sprockets, 1 1/2" (38.1mm) Pitch (ISO 24B-2), 1" (25.4mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number DCS38.1-18 Ondrives Precision Gears and Gearboxes Part number DCS38.1-18

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.24B-2
Pitch/Lead38.1
No. of Teeth [z]18
Tip Diameter [de]233
Ref. Diameter [dp]219.42
Hub Diameter [BD]160
Bore Diameter [di]30
Sprocket Width [E]100
Mass kg21.08

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.24B-2
Pitch/Lead38.1
No. of Teeth [z]18
Tip Diameter [de]233
Ref. Diameter [dp]219.42
Hub Diameter [BD]160
Bore Diameter [di]30
Sprocket Width [E]100
Mass kg21.08
