SAS44-14

Ondrives Precision Gears and Gearboxes Part number SAS44-14

SAS44-14

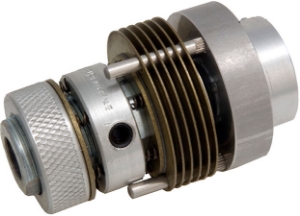

Miniature Friction Slip Clutch with Adjustable Torque, Open Plate Design
Ondrives Precision Gears and Gearboxes Part number SAS44-14 Ondrives Precision Gears and Gearboxes Part number SAS44-14

Product specifications

Capacity at 50 rpm (Nm)9
Capacity at 50 rpm (Watts)43
Friction Surfaces12
Diameter [A]69.85
Bore Diameter [B]14
Max. Bore Diameter [B]16
Dimension [C]72.8
Diameter [D]41.4
Dimension [E]12.7
Dimension [EE]25.4
Dimension [F]47.8
Dimension [G]60.33
Dimension [k] [H]4.78

Product specifications

Capacity at 50 rpm (Nm)9
Capacity at 50 rpm (Watts)43
Friction Surfaces12
Diameter [A]69.85
Bore Diameter [B]14
Max. Bore Diameter [B]16
Dimension [C]72.8
Diameter [D]41.4
Dimension [E]12.7
Dimension [EE]25.4
Dimension [F]47.8
Dimension [G]60.33
Dimension [k] [H]4.78
