FD4A1000MN

Ondrives Precision Gears and Gearboxes Part number FD4A1000MN

FD4A1000MN

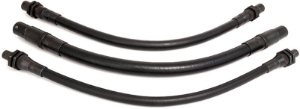

Masterflex Flexible Drive Shaft, High Duty Ball Bearing Type, Ø4mm Shaft
Ondrives Precision Gears and Gearboxes Part number FD4A1000MN Ondrives Precision Gears and Gearboxes Part number FD4A1000MN Ondrives Precision Gears and Gearboxes Part number FD4A1000MN Ondrives Precision Gears and Gearboxes Part number FD4A1000MN Ondrives Precision Gears and Gearboxes Part number FD4A1000MN

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationA (Anti-Clockwise Rotation)
Length1000
Bore Diameter [A]4
Min. Operating Radius75
Torsional Deflection (0.1Nm load at 1m Length) Wind31.3°
Torsional Deflection (0.1Nm load at 1m Length) Unwind75°
Max. Speed [rpm]12000

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationA (Anti-Clockwise Rotation)
Length1000
Bore Diameter [A]4
Min. Operating Radius75
Torsional Deflection (0.1Nm load at 1m Length) Wind31.3°
Torsional Deflection (0.1Nm load at 1m Length) Unwind75°
Max. Speed [rpm]12000
