FD4B1000MN
FD4B1000MN

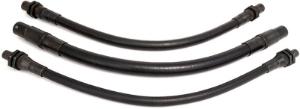

Masterflex Flexible Drive Shaft, High Duty Ball Bearing Type, Ø4mm Shaft
Product specifications
Shaft Rating
High Duty (Ball Bearing)
Shaft Rotation
B (Bi-Direction Rotation)
Length
1000
Bore Diameter [A]
4
Min. Operating Radius
75
Torsional Deflection (0.1Nm load at 1m Length) Wind
28.0°
Torsional Deflection (0.1Nm load at 1m Length) Unwind
56°
Max. Speed [rpm]
3000
Specifications
Overview
Product specifications
Shaft Rating
High Duty (Ball Bearing)
Shaft Rotation
B (Bi-Direction Rotation)
Length
1000
Bore Diameter [A]
4
Min. Operating Radius
75
Torsional Deflection (0.1Nm load at 1m Length) Wind
28.0°
Torsional Deflection (0.1Nm load at 1m Length) Unwind
56°
Max. Speed [rpm]
3000
