FD4C2500MN

Ondrives Precision Gears and Gearboxes Part number FD4C2500MN

FD4C2500MN

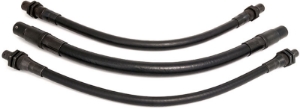

Masterflex Flexible Drive Shaft, High Duty Ball Bearing Type, Ø4mm Shaft
Ondrives Precision Gears and Gearboxes Part number FD4C2500MN Ondrives Precision Gears and Gearboxes Part number FD4C2500MN Ondrives Precision Gears and Gearboxes Part number FD4C2500MN Ondrives Precision Gears and Gearboxes Part number FD4C2500MN Ondrives Precision Gears and Gearboxes Part number FD4C2500MN

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationC (Clockwise Rotation)
Length2500
Bore Diameter [A]4
Min. Operating Radius75
Torsional Deflection (0.1Nm load at 1m Length) Wind31.3°
Torsional Deflection (0.1Nm load at 1m Length) Unwind75°
Max. Speed [rpm]12000

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationC (Clockwise Rotation)
Length2500
Bore Diameter [A]4
Min. Operating Radius75
Torsional Deflection (0.1Nm load at 1m Length) Wind31.3°
Torsional Deflection (0.1Nm load at 1m Length) Unwind75°
Max. Speed [rpm]12000
