FDQ4B1000RS

Ondrives Precision Gears and Gearboxes Part number FDQ4B1000RS

FDQ4B1000RS

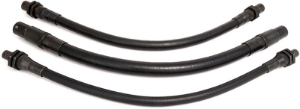

Masterflex Flexible Drive Shaft, Normal Duty Oilite Bush Type, Ø4mm Shaft
Ondrives Precision Gears and Gearboxes Part number FDQ4B1000RS Ondrives Precision Gears and Gearboxes Part number FDQ4B1000RS Ondrives Precision Gears and Gearboxes Part number FDQ4B1000RS Ondrives Precision Gears and Gearboxes Part number FDQ4B1000RS Ondrives Precision Gears and Gearboxes Part number FDQ4B1000RS

Product specifications

Shaft RatingNormal Duty (Oilite Bush)
Shaft RotationB (Bi-Direction Rotation)
Length1000
Bore Diameter [A]4
Min. Operating Radius75
Torsional Deflection (0.1Nm load at 1m Length) Wind28.0°
Torsional Deflection (0.1Nm load at 1m Length) Unwind56°
Max. Speed [rpm]200

Product specifications

Shaft RatingNormal Duty (Oilite Bush)
Shaft RotationB (Bi-Direction Rotation)
Length1000
Bore Diameter [A]4
Min. Operating Radius75
Torsional Deflection (0.1Nm load at 1m Length) Wind28.0°
Torsional Deflection (0.1Nm load at 1m Length) Unwind56°
Max. Speed [rpm]200
