FD6A2500MN

Ondrives Precision Gears and Gearboxes Part number FD6A2500MN

FD6A2500MN

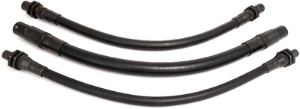

Masterflex Flexible Drive Shaft, High Duty Ball Bearing Type, Ø6mm Shaft
Ondrives Precision Gears and Gearboxes Part number FD6A2500MN Ondrives Precision Gears and Gearboxes Part number FD6A2500MN Ondrives Precision Gears and Gearboxes Part number FD6A2500MN Ondrives Precision Gears and Gearboxes Part number FD6A2500MN Ondrives Precision Gears and Gearboxes Part number FD6A2500MN

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationA (Anti-Clockwise Rotation)
Length2500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationA (Anti-Clockwise Rotation)
Length2500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000
