FD6A500NN

Ondrives Precision Gears and Gearboxes Part number FD6A500NN

FD6A500NN

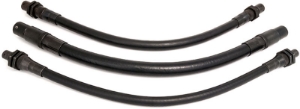

Masterflex Flexible Drive Shaft, High Duty Ball Bearing Type, Ø6mm Shaft
Ondrives Precision Gears and Gearboxes Part number FD6A500NN Ondrives Precision Gears and Gearboxes Part number FD6A500NN Ondrives Precision Gears and Gearboxes Part number FD6A500NN Ondrives Precision Gears and Gearboxes Part number FD6A500NN

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationA (Anti-Clockwise Rotation)
Length500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000

Product specifications

Shaft RatingHigh Duty (Ball Bearing)
Shaft RotationA (Anti-Clockwise Rotation)
Length500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000
