FDQ6A500RR

Ondrives Precision Gears and Gearboxes Part number FDQ6A500RR

FDQ6A500RR

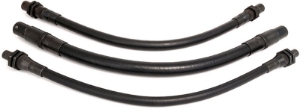

Masterflex Flexible Drive Shaft, Normal Duty Oilite Bush Type, Ø6mm Shaft
Ondrives Precision Gears and Gearboxes Part number FDQ6A500RR Ondrives Precision Gears and Gearboxes Part number FDQ6A500RR Ondrives Precision Gears and Gearboxes Part number FDQ6A500RR Ondrives Precision Gears and Gearboxes Part number FDQ6A500RR

Product specifications

Shaft RatingNormal Duty (Oilite Bush)
Shaft RotationA (Anti-Clockwise Rotation)
Length500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000

Product specifications

Shaft RatingNormal Duty (Oilite Bush)
Shaft RotationA (Anti-Clockwise Rotation)
Length500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000
