FDQ6C2500SS

Ondrives Precision Gears and Gearboxes Part number FDQ6C2500SS

FDQ6C2500SS

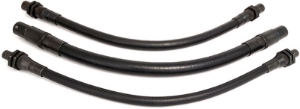

Masterflex Flexible Drive Shaft, Normal Duty Oilite Bush Type, Ø6mm Shaft
Ondrives Precision Gears and Gearboxes Part number FDQ6C2500SS Ondrives Precision Gears and Gearboxes Part number FDQ6C2500SS Ondrives Precision Gears and Gearboxes Part number FDQ6C2500SS Ondrives Precision Gears and Gearboxes Part number FDQ6C2500SS

Product specifications

Shaft RatingNormal Duty (Oilite Bush)
Shaft RotationC (Clockwise Rotation)
Length2500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000

Product specifications

Shaft RatingNormal Duty (Oilite Bush)
Shaft RotationC (Clockwise Rotation)
Length2500
Bore Diameter [A]6
Min. Operating Radius125
Torsional Deflection (0.1Nm load at 1m Length) Wind3.5°
Torsional Deflection (0.1Nm load at 1m Length) Unwind8.75°
Max. Speed [rpm]8000
