FLF06040-06

Ondrives Precision Gears and Gearboxes Part number FLF06040-06

FLF06040-06

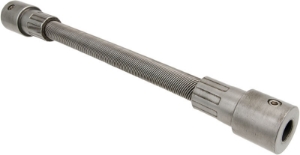

Steel Linkflex Flexible Drive Shaft for Angular and Parallel Offsets up to 300mm
Ondrives Precision Gears and Gearboxes Part number FLF06040-06 Ondrives Precision Gears and Gearboxes Part number FLF06040-06 Ondrives Precision Gears and Gearboxes Part number FLF06040-06

Product specifications

Shaft Diameter [S]6
Overall Length105
Gap Length [L] ±181
Bore Depth [A]12
Bore Diameter [B]6
Hub Diameter [D]16
Max. Angular Offset5.70°
Max. Parallel Offset (mm)4
Max. Speed [rpm]3600
Max. Torque (Nm)1.45

Product specifications

Shaft Diameter [S]6
Overall Length105
Gap Length [L] ±181
Bore Depth [A]12
Bore Diameter [B]6
Hub Diameter [D]16
Max. Angular Offset5.70°
Max. Parallel Offset (mm)4
Max. Speed [rpm]3600
Max. Torque (Nm)1.45
