    Ground Helical Gears

    Parallel Axis Helical Gears.

    Mating gears have to be 1 left and 1 right hand helix to mesh in parallel .
    Helcial gears and pinions have higher amount of contact due to the helix angles.
    At Ondrives we are able to manufacture to drawings and design specs, have a look at our capabilities at :
    Helical Gear Information

    View as Grid List
    Sort by
    Display per page

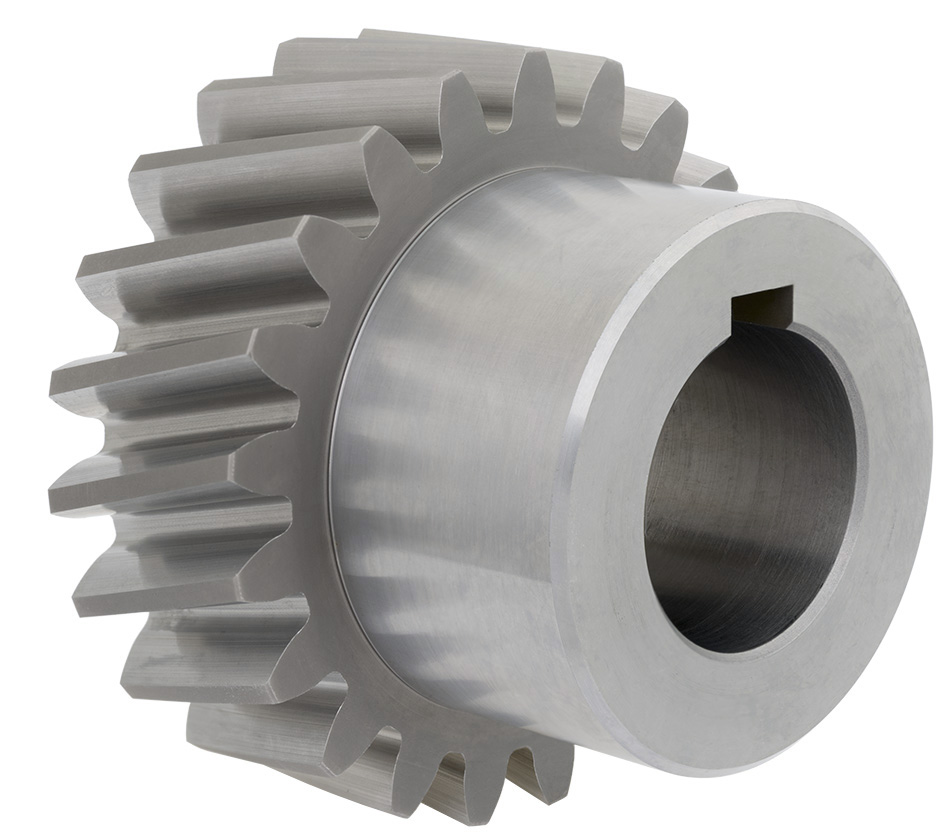

    Ground Helical Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    UPHG0.5-100LH-K

    UPHG0.5-100LH-K
    0.5 Module Case Hardened 805M20 (58-62HRC) 15 deg. Left Hand Helix Ground Parallel Helical Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPHG0.5-100LPH-K

    UPHG0.5-100LPH-K

    UPHG0.5-100LPH-K
    0.5 Module 17-4PH Stainless Steel (38-40HRC) 15 deg. Left Hand Helix Ground Parallel Helical Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPHG0.5-100RH-K

    UPHG0.5-100RH-K

    UPHG0.5-100RH-K
    0.5 Module Case Hardened 805M20 (58-62HRC) 15 deg. Right Hand Helix Ground Parallel Helical Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPHG0.5-100RPH-K

    UPHG0.5-100RPH-K

    UPHG0.5-100RPH-K
    0.5 Module 17-4PH Stainless Steel (38-40HRC) 15 deg. Right Hand Helix Ground Parallel Helical Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPHG0.5-110LH-K

    UPHG0.5-110LH-K

    UPHG0.5-110LH-K
    0.5 Module Case Hardened 805M20 (58-62HRC) 15 deg. Left Hand Helix Ground Parallel Helical Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPHG0.5-110LPH-K

    UPHG0.5-110LPH-K

    UPHG0.5-110LPH-K
    0.5 Module 17-4PH Stainless Steel (38-40HRC) 15 deg. Left Hand Helix Ground Parallel Helical Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
