    Precision Ground Spur Gears

    Ondrives precision spur gears are manufactured in our UK factory to high quality grades in DIN 3961/3967 (AGMA).
    Spur gears have straight teeth and can be macro/micro geometry optomised for applications using the latest Kisssoft design software to give smoother and high torques if needed.
    Are available from 0.5Mod - 12Mod.
    We can also manufacture to customers drawings and specifications with full traceability, first article inspection reports (F.A.I.R), and inspection reports.
    See more on our ground gear products and what we can do at ondrives.com click the like below -

    Ondrives.com ground gears information

    View as Grid List
    Sort by
    Display per page

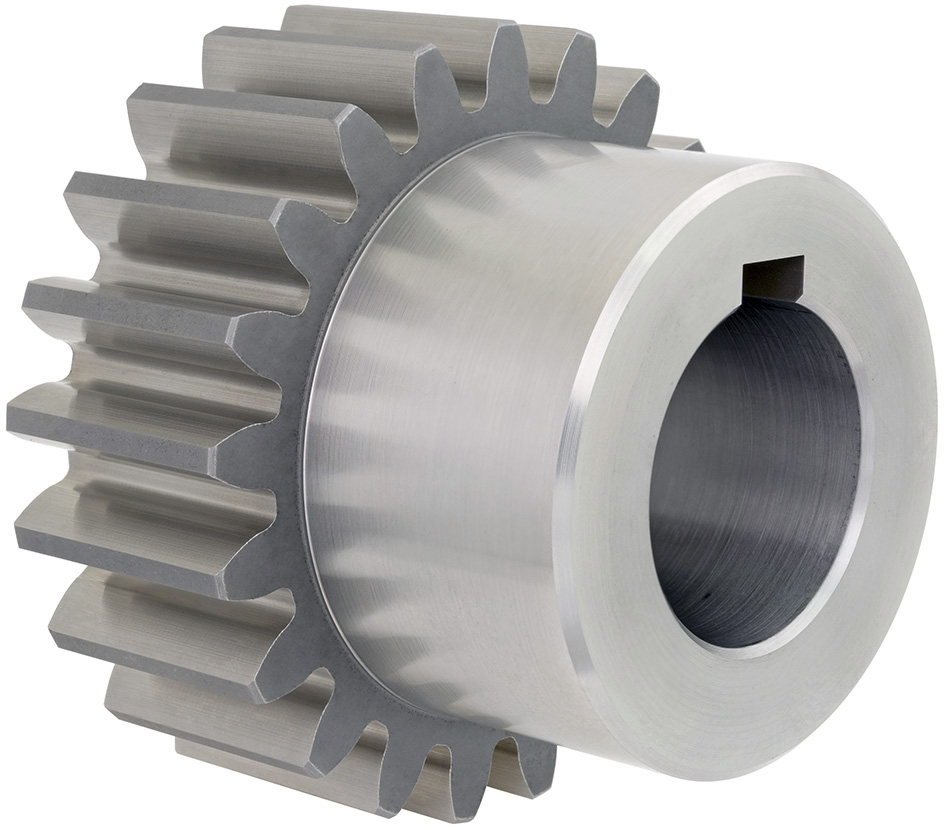

    Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    UPSG0.5-100H-K

    UPSG0.5-100H-K
    0.5 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPSG0.5-100PH-K

    UPSG0.5-100PH-K

    UPSG0.5-100PH-K
    0.5 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    UPSG0.5-110H-K

    UPSG0.5-110H-K
    0.5 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ground Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    UPSG0.5-110PH-K

    UPSG0.5-110PH-K
    0.5 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPSG0.5-120H-K

    UPSG0.5-120H-K

    UPSG0.5-120H-K
    0.5 Module Case Hardened 805M20 (58-62HRC) Ground Spur Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
    Ondrives Precision Gears and Gearboxes Part number  UPSG0.5-120PH-K

    UPSG0.5-120PH-K

    UPSG0.5-120PH-K
    0.5 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20 deg. PA Quality Grade 5f DIN 3961/58405
