Ground Worms

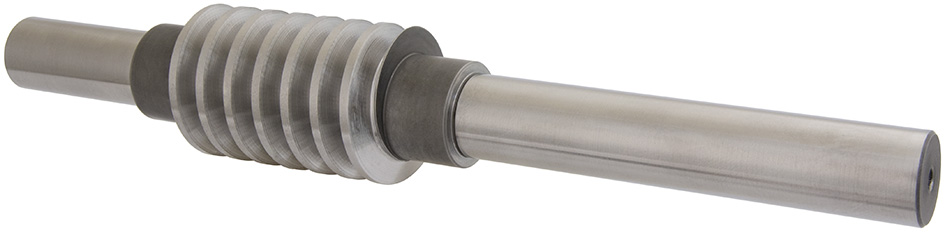

Precision Ground Worms
Ondrives grinds the flanks and roots of these worms at our UK factory.
| Sku (Part No.) | Gear Tooth Type | Type | Axial Module mx | No. of Starts worm [z1] | Material |
|---|---|---|---|---|---|
| UPSW0.5-1H | Worm Ground | Shaft | 0.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-2H | Worm Ground | Shaft | 0.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-3H | Worm Ground | Shaft | 0.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-4H | Worm Ground | Shaft | 0.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-1PH | Worm Ground | Shaft | 0.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW0.5-2PH | Worm Ground | Shaft | 0.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW0.5-3PH | Worm Ground | Shaft | 0.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW0.5-4PH | Worm Ground | Shaft | 0.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-1H | Worm Ground | Shaft | 1.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-2H | Worm Ground | Shaft | 1.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-3H | Worm Ground | Shaft | 1.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-4H | Worm Ground | Shaft | 1.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-1H | Worm Ground | Shaft | 1.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-2H | Worm Ground | Shaft | 1.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-3H | Worm Ground | Shaft | 1.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-4H | Worm Ground | Shaft | 1.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-1PH | Worm Ground | Shaft | 1.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-2PH | Worm Ground | Shaft | 1.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-3PH | Worm Ground | Shaft | 1.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-4PH | Worm Ground | Shaft | 1.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-1PH | Worm Ground | Shaft | 1.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-2PH | Worm Ground | Shaft | 1.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-3PH | Worm Ground | Shaft | 1.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-4PH | Worm Ground | Shaft | 1.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-1H | Worm Ground | Shaft | 2.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-2H | Worm Ground | Shaft | 2.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-3H | Worm Ground | Shaft | 2.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-4H | Worm Ground | Shaft | 2.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-1H | Worm Ground | Shaft | 2.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-2H | Worm Ground | Shaft | 2.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-3H | Worm Ground | Shaft | 2.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-4H | Worm Ground | Shaft | 2.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-1PH | Worm Ground | Shaft | 2.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-2PH | Worm Ground | Shaft | 2.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-3PH | Worm Ground | Shaft | 2.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-4PH | Worm Ground | Shaft | 2.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-1PH | Worm Ground | Shaft | 2.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-2PH | Worm Ground | Shaft | 2.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-3PH | Worm Ground | Shaft | 2.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-4PH | Worm Ground | Shaft | 2.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-1H | Worm Ground | Shaft | 3.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-2H | Worm Ground | Shaft | 3.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-3H | Worm Ground | Shaft | 3.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-4H | Worm Ground | Shaft | 3.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-1PH | Worm Ground | Shaft | 3.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-2PH | Worm Ground | Shaft | 3.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-3PH | Worm Ground | Shaft | 3.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-4PH | Worm Ground | Shaft | 3.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-1H | Worm Ground | Bore | 0.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-2H | Worm Ground | Bore | 0.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-3H | Worm Ground | Bore | 0.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-4H | Worm Ground | Bore | 0.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-1PH | Worm Ground | Bore | 0.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-2PH | Worm Ground | Bore | 0.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-3PH | Worm Ground | Bore | 0.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-4PH | Worm Ground | Bore | 0.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-1H | Worm Ground | Bore | 1.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-2H | Worm Ground | Bore | 1.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-3H | Worm Ground | Bore | 1.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-4H | Worm Ground | Bore | 1.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-1H | Worm Ground | Bore | 1.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-2H | Worm Ground | Bore | 1.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-3H | Worm Ground | Bore | 1.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-4H | Worm Ground | Bore | 1.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-1PH | Worm Ground | Bore | 1.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-2PH | Worm Ground | Bore | 1.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-3PH | Worm Ground | Bore | 1.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-4PH | Worm Ground | Bore | 1.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-1PH | Worm Ground | Bore | 1.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-2PH | Worm Ground | Bore | 1.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-3PH | Worm Ground | Bore | 1.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-4PH | Worm Ground | Bore | 1.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-1H | Worm Ground | Bore | 2.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-2H | Worm Ground | Bore | 2.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-3H | Worm Ground | Bore | 2.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-4H | Worm Ground | Bore | 2.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-1H | Worm Ground | Bore | 2.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-2H | Worm Ground | Bore | 2.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-3H | Worm Ground | Bore | 2.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-4H | Worm Ground | Bore | 2.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-1PH | Worm Ground | Bore | 2.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-2PH | Worm Ground | Bore | 2.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-3PH | Worm Ground | Bore | 2.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-4PH | Worm Ground | Bore | 2.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-1PH | Worm Ground | Bore | 2.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-2PH | Worm Ground | Bore | 2.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-3PH | Worm Ground | Bore | 2.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-4PH | Worm Ground | Bore | 2.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-1H | Worm Ground | Bore | 3.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-2H | Worm Ground | Bore | 3.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-3H | Worm Ground | Bore | 3.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-4H | Worm Ground | Bore | 3.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-1PH | Worm Ground | Bore | 3.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-2PH | Worm Ground | Bore | 3.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-3PH | Worm Ground | Bore | 3.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-4PH | Worm Ground | Bore | 3.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
