HU816A

Ondrives Precision Gears and Gearboxes Part number HU816A

HU816A

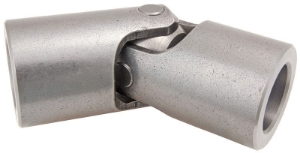

Single Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU816A Ondrives Precision Gears and Gearboxes Part number HU816A

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-02
Bore Diameter [B] H710
Max. Bore Diameter [B] H710
Diameter [D] k1116
Dimension [C]15
Dimension [L1]26
Dimension [L2] ±152
Mass (g)50
Static Axial Load (N)75
Backlash at Nm0.2
Backlash arc min1°45'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-02
Bore Diameter [B] H710
Max. Bore Diameter [B] H710
Diameter [D] k1116
Dimension [C]15
Dimension [L1]26
Dimension [L2] ±152
Mass (g)50
Static Axial Load (N)75
Backlash at Nm0.2
Backlash arc min1°45'
