HU816A1

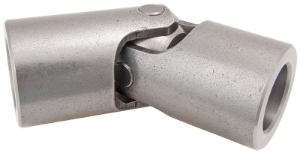

Ondrives Precision Gears and Gearboxes Part number HU816A1

HU816A1

Single Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU816A1 Ondrives Precision Gears and Gearboxes Part number HU816A1

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-02
Bore Diameter [B] H76
Max. Bore Diameter [B] H76
Diameter [D] k1116
Dimension [C]9
Dimension [L1]17
Dimension [L2] ±134
Mass (g)35
Static Axial Load (N)40
Backlash at Nm0.2
Backlash arc min1°45'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-02
Bore Diameter [B] H76
Max. Bore Diameter [B] H76
Diameter [D] k1116
Dimension [C]9
Dimension [L1]17
Dimension [L2] ±134
Mass (g)35
Static Axial Load (N)40
Backlash at Nm0.2
Backlash arc min1°45'
