HU816C

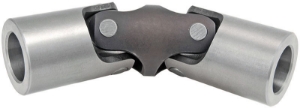

Ondrives Precision Gears and Gearboxes Part number HU816C

HU816C

Double Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU816C Ondrives Precision Gears and Gearboxes Part number HU816C

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To SuitU8R-19
Bore Diameter [B] H710
Max. Bore Diameter [B] H710
Diameter [D] k1116
Dimension [C]15
Dimension [L1]26
Dimension [L2] ±174
Dimension [L3]22
Mass (g)75
Static Axial Load (N)-
Backlash at Nm0.2
Backlash arc min1°30'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To SuitU8R-19
Bore Diameter [B] H710
Max. Bore Diameter [B] H710
Diameter [D] k1116
Dimension [C]15
Dimension [L1]26
Dimension [L2] ±174
Dimension [L3]22
Mass (g)75
Static Axial Load (N)-
Backlash at Nm0.2
Backlash arc min1°30'
