HU832A

Ondrives Precision Gears and Gearboxes Part number HU832A

HU832A

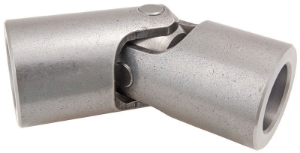

Single Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU832A Ondrives Precision Gears and Gearboxes Part number HU832A

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-3
Bore Diameter [B] H720
Max. Bore Diameter [B] H720
Diameter [D] k1132
Dimension [C]25
Dimension [L1]43
Dimension [L2] ±186
Mass (g)330
Static Axial Load (N)485
Backlash at Nm1.7
Backlash arc min1°28'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-3
Bore Diameter [B] H720
Max. Bore Diameter [B] H720
Diameter [D] k1132
Dimension [C]25
Dimension [L1]43
Dimension [L2] ±186
Mass (g)330
Static Axial Load (N)485
Backlash at Nm1.7
Backlash arc min1°28'
