HU840A

Ondrives Precision Gears and Gearboxes Part number HU840A

HU840A

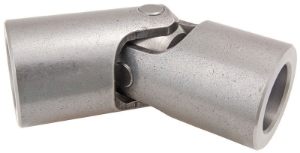

Single Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU840A Ondrives Precision Gears and Gearboxes Part number HU840A

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-5
Bore Diameter [B] H725
Max. Bore Diameter [B] H725
Diameter [D] k1140
Dimension [C]32
Dimension [L1]54
Dimension [L2] ±1108
Mass (g)650
Static Axial Load (N)950
Backlash at Nm3.4
Backlash arc min1°25'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-5
Bore Diameter [B] H725
Max. Bore Diameter [B] H725
Diameter [D] k1140
Dimension [C]32
Dimension [L1]54
Dimension [L2] ±1108
Mass (g)650
Static Axial Load (N)950
Backlash at Nm3.4
Backlash arc min1°25'
