HU840C1

Ondrives Precision Gears and Gearboxes Part number HU840C1

HU840C1

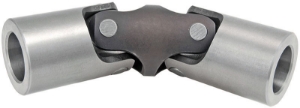

Double Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU840C1 Ondrives Precision Gears and Gearboxes Part number HU840C1

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To SuitU8R-25
Bore Diameter [B] H720
Max. Bore Diameter [B] H740
Diameter [D] k1140
Dimension [C]20
Dimension [L1]41
Dimension [L2] ±1128
Dimension [L3]47
Mass (g)860
Static Axial Load (N)650
Backlash at Nm3.4
Backlash arc min0°50'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To SuitU8R-25
Bore Diameter [B] H720
Max. Bore Diameter [B] H740
Diameter [D] k1140
Dimension [C]20
Dimension [L1]41
Dimension [L2] ±1128
Dimension [L3]47
Mass (g)860
Static Axial Load (N)650
Backlash at Nm3.4
Backlash arc min0°50'
