HU850C1

Ondrives Precision Gears and Gearboxes Part number HU850C1

HU850C1

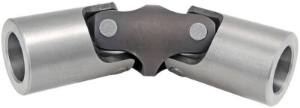

Double Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU850C1 Ondrives Precision Gears and Gearboxes Part number HU850C1

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To SuitU8R-27
Bore Diameter [B] H725
Max. Bore Diameter [B] H725
Diameter [D] k1150
Dimension [C]25
Dimension [L1]52
Dimension [L2] ±1160
Dimension [L3]56
Mass (g)1680
Static Axial Load (N)1200
Backlash at Nm5.4
Backlash arc min0°40'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To SuitU8R-27
Bore Diameter [B] H725
Max. Bore Diameter [B] H725
Diameter [D] k1150
Dimension [C]25
Dimension [L1]52
Dimension [L2] ±1160
Dimension [L3]56
Mass (g)1680
Static Axial Load (N)1200
Backlash at Nm5.4
Backlash arc min0°40'
