HU863A

Ondrives Precision Gears and Gearboxes Part number HU863A

HU863A

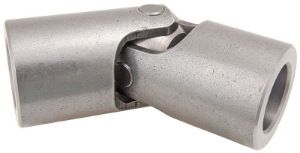

Single Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU863A Ondrives Precision Gears and Gearboxes Part number HU863A

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-9
Bore Diameter [B] H740
Max. Bore Diameter [B] H740
Diameter [D] k1163
Dimension [C]48
Dimension [L1]83
Dimension [L2] ±1166
Mass (g)2350
Static Axial Load (N)3750
Backlash at Nm15
Backlash arc min1°18'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint
Rubber Cover To SuitU8R-9
Bore Diameter [B] H740
Max. Bore Diameter [B] H740
Diameter [D] k1163
Dimension [C]48
Dimension [L1]83
Dimension [L2] ±1166
Mass (g)2350
Static Axial Load (N)3750
Backlash at Nm15
Backlash arc min1°18'
