HU863C

Ondrives Precision Gears and Gearboxes Part number HU863C

HU863C

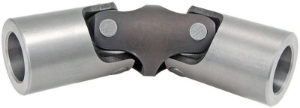

Double Steel Universal Joint, Hardened Pin
Ondrives Precision Gears and Gearboxes Part number HU863C Ondrives Precision Gears and Gearboxes Part number HU863C

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To Suit-
Bore Diameter [B] H740
Max. Bore Diameter [B] H740
Diameter [D] k1163
Dimension [C]48
Dimension [L1]83
Dimension [L2] ±1236
Dimension [L3]70
Mass (g)3750
Static Axial Load (N)-
Backlash at Nm15
Backlash arc min0°36'

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationDouble Joint
Rubber Cover To Suit-
Bore Diameter [B] H740
Max. Bore Diameter [B] H740
Diameter [D] k1163
Dimension [C]48
Dimension [L1]83
Dimension [L2] ±1236
Dimension [L3]70
Mass (g)3750
Static Axial Load (N)-
Backlash at Nm15
Backlash arc min0°36'
