B2220

Ondrives Precision Gears and Gearboxes Part number B2220

B2220

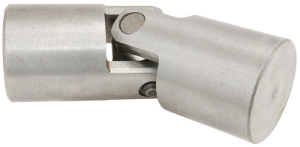

Single Precision Steel Heavy Duty Universal Joint
Ondrives Precision Gears and Gearboxes Part number B2220 Ondrives Precision Gears and Gearboxes Part number B2220

Product specifications

MaterialSteel (EN16T) 605 M36
Joint ConfigurationSingle Joint
Rubber Cover To SuitNB2220
Dimension [L]95
Diameter [D]32
Dimension [C]28
Max. Bore Diameter [B]22
Max. ØB with Keyway18
Steel Elastic limit (Nm)260
Stainless Elastic Limit (Nm)182

Product specifications

MaterialSteel (EN16T) 605 M36
Joint ConfigurationSingle Joint
Rubber Cover To SuitNB2220
Dimension [L]95
Diameter [D]32
Dimension [C]28
Max. Bore Diameter [B]22
Max. ØB with Keyway18
Steel Elastic limit (Nm)260
Stainless Elastic Limit (Nm)182
