RMA-63

Ondrives Precision Gears and Gearboxes Part number RMA-63

RMA-63

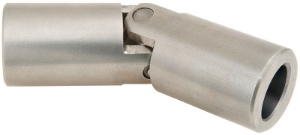

Double Precision Stainless Steel Heavy Duty Universal Joint
Ondrives Precision Gears and Gearboxes Part number RMA-63 Ondrives Precision Gears and Gearboxes Part number RMA-63

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Joint ConfigurationSingle Joint
Diameter [D]63
Bore Diameter [B] H732
Dimension [L]166
Max. Bore Diameter [B]45
Max. ØB with Keyway35
Max. Bore Depth43
Elastic Limit (Nm)1344

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Joint ConfigurationSingle Joint
Diameter [D]63
Bore Diameter [B] H732
Dimension [L]166
Max. Bore Diameter [B]45
Max. ØB with Keyway35
Max. Bore Depth43
Elastic Limit (Nm)1344
