RME-25

Ondrives Precision Gears and Gearboxes Part number RME-25

RME-25

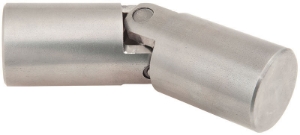

Single Precision Stainless Steel Heavy Duty Universal Joint
Ondrives Precision Gears and Gearboxes Part number RME-25 Ondrives Precision Gears and Gearboxes Part number RME-25

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Joint ConfigurationSingle Joint
Rubber Cover To SuitNB2210
Dimension [L]86
Diameter [D]25
Dimension [C]26
Max. Bore Diameter [B]16
Max. ØB with Keyway14
Steel Elastic limit (Nm)124
Stainless Elastic Limit (Nm)87

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Joint ConfigurationSingle Joint
Rubber Cover To SuitNB2210
Dimension [L]86
Diameter [D]25
Dimension [C]26
Max. Bore Diameter [B]16
Max. ØB with Keyway14
Steel Elastic limit (Nm)124
Stainless Elastic Limit (Nm)87
