RME-63

Ondrives Precision Gears and Gearboxes Part number RME-63

RME-63

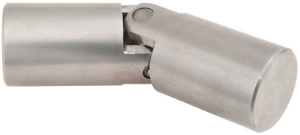

Single Precision Stainless Steel Heavy Duty Universal Joint
Ondrives Precision Gears and Gearboxes Part number RME-63 Ondrives Precision Gears and Gearboxes Part number RME-63

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Joint ConfigurationSingle Joint
Rubber Cover To Suit-
Dimension [L]178
Diameter [D]63
Dimension [C]52
Max. Bore Diameter [B]45
Max. ØB with Keyway35
Steel Elastic limit (Nm)1920
Stainless Elastic Limit (Nm)1344

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Joint ConfigurationSingle Joint
Rubber Cover To Suit-
Dimension [L]178
Diameter [D]63
Dimension [C]52
Max. Bore Diameter [B]45
Max. ØB with Keyway35
Steel Elastic limit (Nm)1920
Stainless Elastic Limit (Nm)1344
