KMT13

Ondrives Precision Gears and Gearboxes Part number KMT13

KMT13

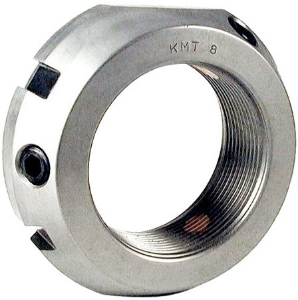

High Precision Bearing Locknut, M65
Ondrives Precision Gears and Gearboxes Part number KMT13 Ondrives Precision Gears and Gearboxes Part number KMT13 Ondrives Precision Gears and Gearboxes Part number KMT13

Product specifications

Thread [M x P]M65 x 2
Diameter [D]95
Diameter [D1]87
Diameter [D2]68
Diameter [D3]83
Dimension [k] [H]28
Dimension [S]8
Dimension [T]3.5
Dimension [W]90
Static Axial Load Carrying Capacity [kN]460
Mass [kg]0.71
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18

Product specifications

Thread [M x P]M65 x 2
Diameter [D]95
Diameter [D1]87
Diameter [D2]68
Diameter [D3]83
Dimension [k] [H]28
Dimension [S]8
Dimension [T]3.5
Dimension [W]90
Static Axial Load Carrying Capacity [kN]460
Mass [kg]0.71
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18
