KMT34

Ondrives Precision Gears and Gearboxes Part number KMT34

KMT34

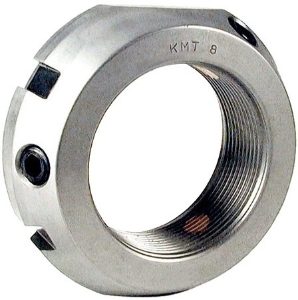

High Precision Bearing Locknut, M170
Ondrives Precision Gears and Gearboxes Part number KMT34 Ondrives Precision Gears and Gearboxes Part number KMT34 Ondrives Precision Gears and Gearboxes Part number KMT34

Product specifications

Thread [M x P]M170 x 3
Diameter [D]205
Diameter [D1]192
Diameter [D2]172
Diameter [D3]192
Dimension [k] [H]32
Dimension [S]14
Dimension [T]5
Static Axial Load Carrying Capacity [kN]1160
Mass [kg]2.2
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35

Product specifications

Thread [M x P]M170 x 3
Diameter [D]205
Diameter [D1]192
Diameter [D2]172
Diameter [D3]192
Dimension [k] [H]32
Dimension [S]14
Dimension [T]5
Static Axial Load Carrying Capacity [kN]1160
Mass [kg]2.2
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35
